PATCHBAYS
20

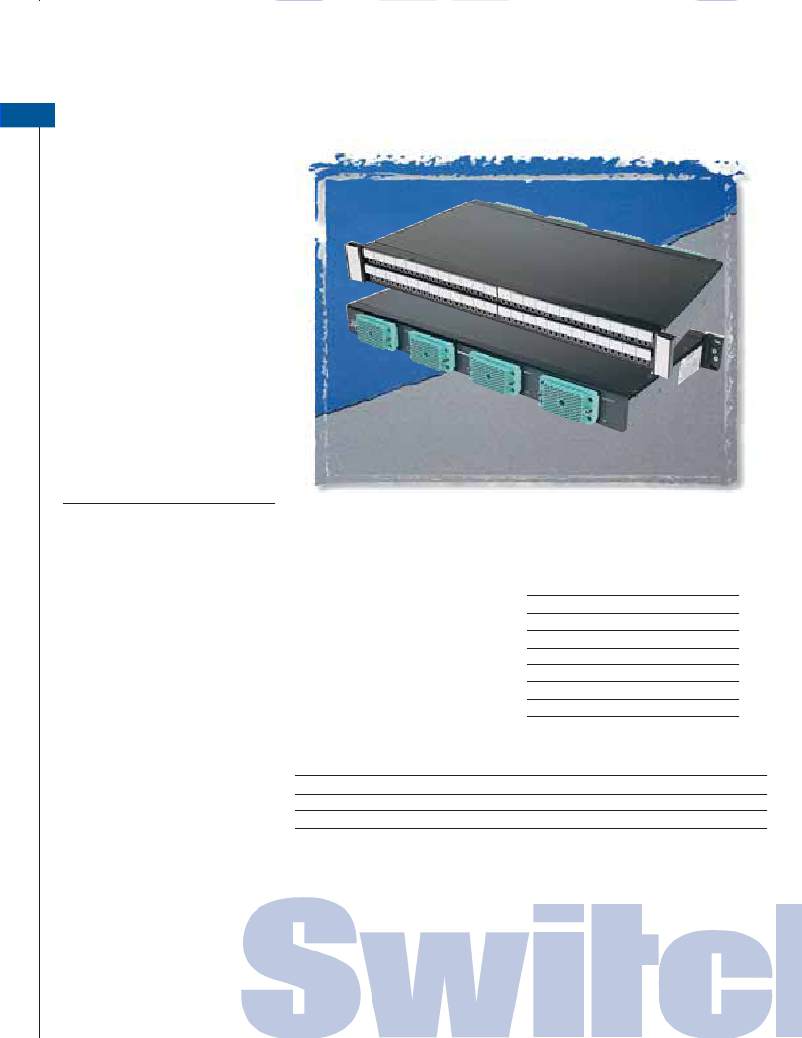

TT96 EDAC Series
Features and Benefits
? Attractive, corrosion-resistant,
nickel-plated jacks
? Steel frame jacks for superior
jack life
? Extra wide labeling strips provide
maximum space and two vertical
strips, one at each side
? Rugged, attractive black anodized
aluminum face will not break
? Two configurations available:
- Normals brought out
- Normaled at jacks
? Gold switching contacts for
long-term reliability
TT96EDACNS
? Jacks paired for easy identification
of left and right channels
? Connectorized by EDAC ?
connectors for ease of termination
by customer
Specifications
The TT96EDAC Series offers the convenience of EDAC ? connectors on the back of
Materials
Jacks
Frame: Nickel-plated steel
Bushing: Nickel-plated brass
the panel for easy installation. Available in normals strapped and normals
brought out, both wired to the SAC code of wiring. We also offer custom wiring
configurations. Contact the factory for details.
Tip, Ring and Shunt Springs: Nickel
silver with welded contacts
Assembly Screws: Zinc-plated
steel
Welded Contacts: Gold alloy
Panel
Front Channel: Black anodized
aluminum
Frame & Cover: C.R.S. black
epoxy painted
Designation Strips: Black polycar-
bonate 94V-0
Designation Strip Covers: Clear
polycarbonate
Electrical
Contact Resistance: 30 milliohms
maximum initial
Insulation Resistance:
10,000 megohms
Dielectric Withstanding Voltage:
500VAC at 60 Hz
Working Voltage: 140VDC
Current Rating: 100 milliamps
Ordering Information
EDAC Mating Plugs
Part Number Description
516-090-000-301 90 Pin male w/ screw
516-090-000-302 90 Pin male w/ nut
516-120-000-101   120 Pin male w/ screw
516-120-000-102 120 Pin male w/ nut
516-290-500 Terminal solder-style
516-290-590 Terminal crimp-style
Jack Inserts: Polyester
Part Number Type of Jack No. of Jacks
Description
EDAC Connector
Housing: Thermoplastic, UL94V-0
TT96EDACNO
TT96EDACNS
TT
TT
96
96
Normals Brought Out (120 pin EDAC)
Normals Strapped (90 pin EDAC)
Contacts: Gold plated phosphor
bronze
Mechanical
Life: 30,000 cycles
Insertion Force: 7 lbs. maximum
Withdrawal Force: 1 lb. minimum
Operating: -20?C to +65?C
